Solid Wedge Water Gate Valve Stainless Steel Water Treatment Valves

Suzhou Ephood Automation Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

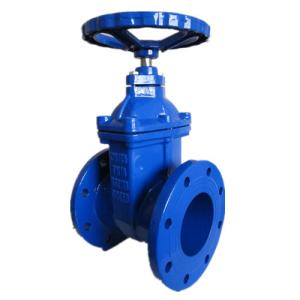

Solid Wedge Water Gate Valve Stainless Steel Water Treatment Valves

Brand Name : sufa

Model Number : Z41H-16c

Certification : (DNV)ISO9001,(DNV)ISO14001,CE0035

Place of Origin : China

MOQ : 1 set

Price : USD 50~500/SET

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 500 SETS/MONTH

Delivery Time : within 8-12 working days upon receipt of payment

Packaging Details : Wooden box, ply-wood box, carton box, pallet

Name : Non Rising Stem Solid Wedge Gate Valve

Size : DN15-1000

Pressure : 1.6-16mpa

Temperature : -29-425

Valve body material : WCB

Applicable medium : water and oil vapor, etc

Contact Now

Non Rising Stem Solid Wedge Gate Valve

Size:2"~40"

Pressure:150LB

Material: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M,Etc.

Operation: Hand Wheel. Gear, Electricty, Etc

Standard:
Design And Manufacture: API 600, API 6D, BS1414,Etc.
Face To Face (End To End): ANSI B16.10, API 6D,Etc.
Flanged Connection: ANSI B16.5,Etc.
Butt Welded End: ANSI B16.25,Etc.
Test And Inspection: API 598, API 6D,Etc.

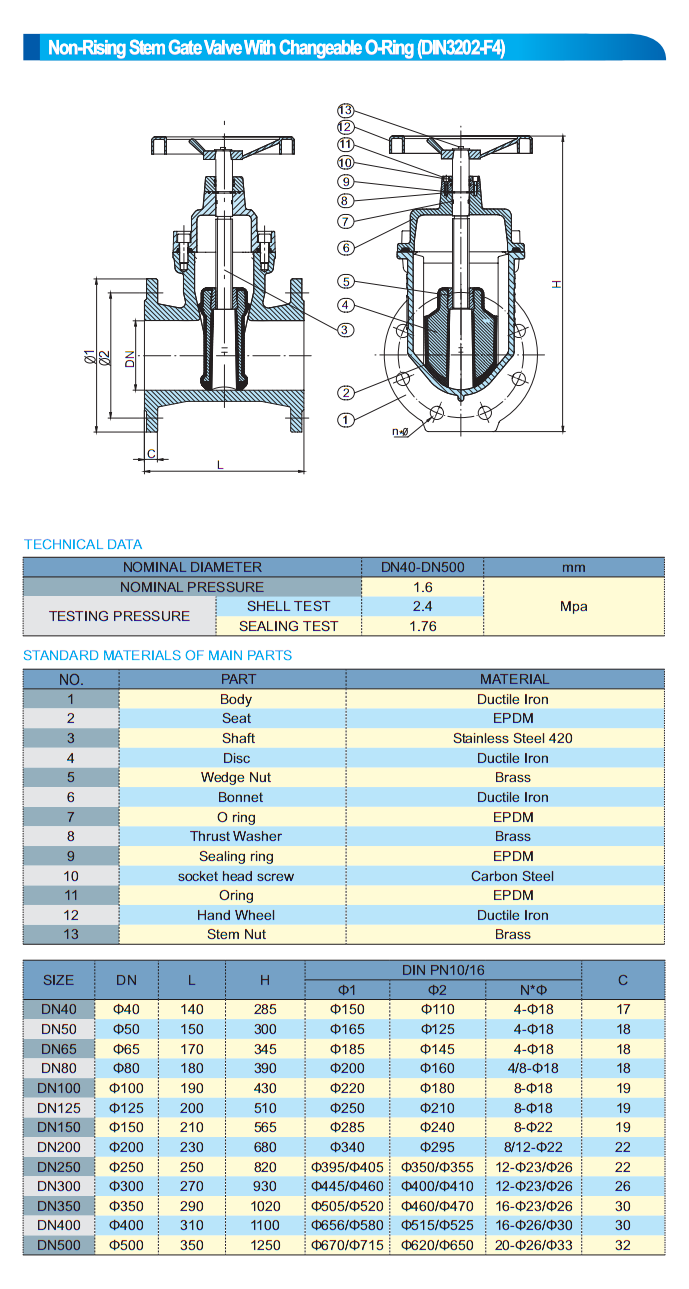

Specification
Size DN50—DN600
Nominal Pressure PN10/PN16
Working Temperature -10°C~120°C
Suitable Medium Chemicals,air,water,steam,oil, acids,salts,etc
Standards:
Design standard DIN3352 F4/F5, MSS SP-70,AWWA C509/515,BS5163
Face to Face DIN3202 F4/F5, BS5163, ANSI B16.10
Flange Drilling DIN2533 PN10/PN16, ANSI 125/150,JIS10K
Test Inspection DIN3230, BS6755
Materials:
Body Cast Iron, Ductile Iron
Wedge Cast Iron, Ductile Iron
Stem Stainless steel
Sealing Ring EPDM
O Ring EPDM
Solid Wedge Water Gate Valve Stainless Steel Water Treatment Valves
Solid Wedge Water Gate Valve Stainless Steel Water Treatment Valves
