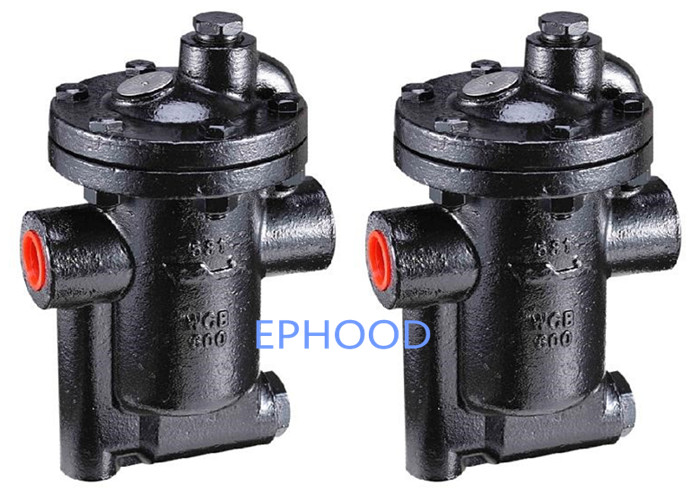

680 Model Cast Steel Material Inverted Bucket Steam Trap
Two years warranty
Features :
1. DSC steam traps are famous for high efficiency, energy saving and low cost , high versatility,long work life, Suitable for low pressure main steam pipe and various heat exchanger
2. All DSC steam traps equipped with DSC patent resist water hammer and prevent broken watermain non-return valve
3. Inspection hole on top, After open made known the steam trap is normal or not
4. Drip discharge under low load,medium load in the intermittent discharge,full load with continuous emissions
5. There are different orifice steam traps to choose from , maintain a certain displacement under different pressure
6. When operating the entire discharge condensate gas, Back pressure resistance is strong, suitable for recycling system
7. Some steam traps can be equipped with fittings in accordance with the customer demand and supply of parts
8. Chrome parts adopt stainless steel and hardened seating, wear-resisting corrosion resistanc
9. F12 and F12F adopts double seat design, heavy traffic
10. Small series can be mounted to the distributor, reduce the water hammer shock
11. Parts can be replaced
Matters needing attention:
1. Big size, not resistant to cold
2. Required for a device level, can't skewed
3. Cannot be used for overheat steam
680 Model Steam Traps' specifications:
| Model | Port size(mm) | A(mm) | B(mm) | C(mm) | MOP(Mpa) | Weight(kg) |
| 680 | 15.20 | 73 | 100 | 100 | 2.8 | 3 |
Material
| Body | ASTM A216.WCB cast-steel |
| Inverted Bucket | stainless steel |
| Mchanism | stainless steel |
| Seat | hrdened chrome steel |
| Gasket | Non-Abestos |
| Check valve | stainless steel |
| Filter | stainless steel |
| Screw | ASTM A193-B7 Alloy steel |
| Nut | ASTM A194-2H Alloy steel |
